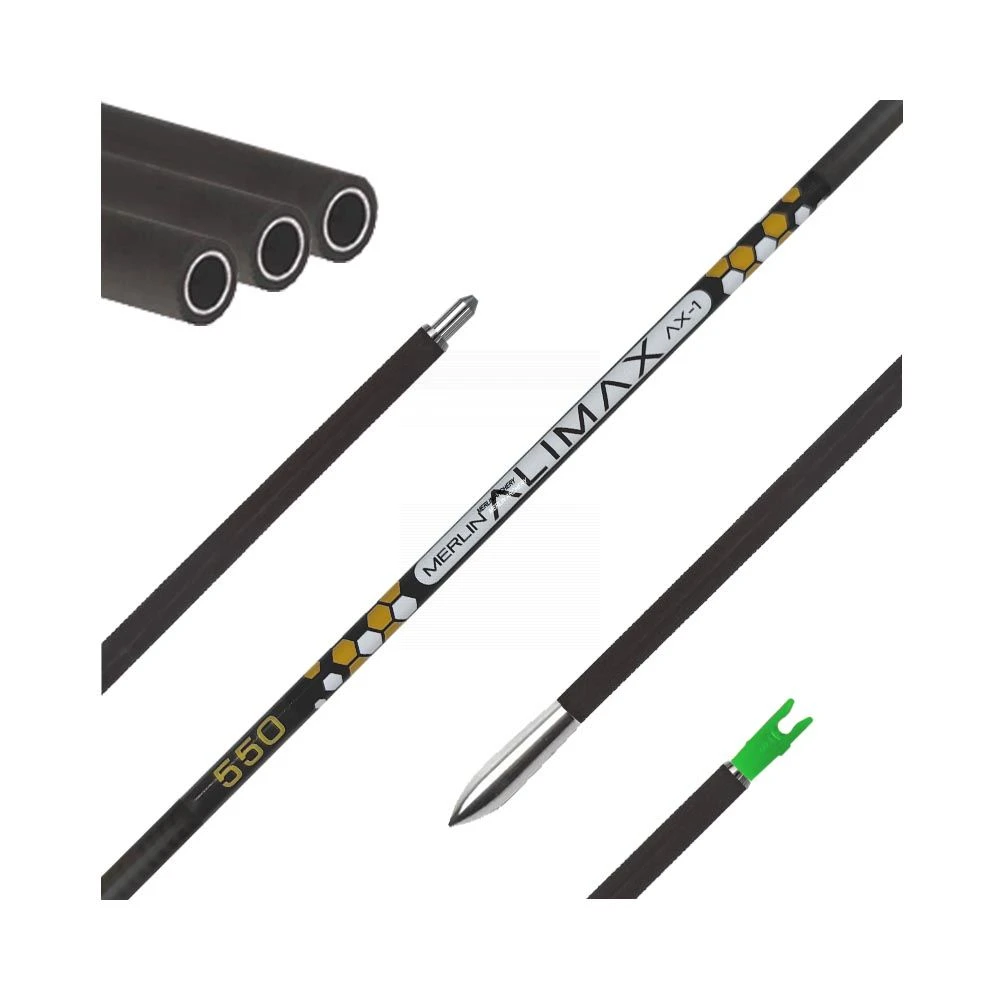

Introducing Merlin’s New Line Of Arrow Shafts, The Alimax Series.
Unique 3.9mm Inside Diameter, Is Perfect For Both Recurve And Compound Archers Looking For A More Competitively Priced Alternative To Other A/C Shafts, Without Losing Quality.
Â
Construction is 7075 Alloy Aluminium Core With A High Strength Carbon Wrap.
Matched Sets of 12 , With A Straigtness Of ±.002″ And Weight Tolerance Of ±1.0gn.
Â
Specifications:
- High-strength carbon fibre bonded to a 7075 alloy core
- Straightness Of ±.002″
- Weight Tolerance Of ±1.0gn
- 13 Available Spines : 350-1000
- Stainless Steel Break Off Points Included
- 7075 Nock Pins Included
- Small Groove Pin Nocks Included (Colour May Vary)
Â
Components:
Due To The Unique I/D 3.9mm, Only 3.9mm Alimax Points And 3.9mm Alimax Nock Pins Will Fit These Shafts.
The Nock Pins Will Take Any Style Pin Nocks.
**All Components Will Be Sent With The Shafts Uninstalled, If You Require Components To Be Fitted Please Select These Arrows From Our Custom Made Arrow Section**
| Spine | Outer Diameter | GPI | AMO Stock Length | Point Weight |
| 350 | 6.06 | 10.87 | 32″ | 100-120gr |
| 400 | 5.88 | 9.81 | 32″ | 100-120gr |
| 450 | 5.77 | 9.13 | 32″ | 100-120gr |
| 500 | 5.68 | 8.66 | 32″ | 100-120gr |
| 550 | 5.61 | 8.28 | 32″ | 100-120gr |
| 600 | 5.52 | 7.81 | 31″ | 80-100gr |
| 650 | 5.46 | 7.56 | 31″ | 80-100gr |
| 700 | 5.40 | 7.10 | 31″ | 80-100gr |
| 750 | 5.39 | 6.93 | 31″ | 80-100gr |
| 800 | 5.32 | 6.75 | 31″ | 80-100gr |
| 850 | 5.30 | 6.50 | 30″ | 60-80gr |
| 900 | 5.23 | 6.19 | 30″ | 60-80gr |
| 1000 | 5.17 | 5.94 | 30″ | 60-80gr |
Â
